Duplex Stainless Steel 2507 A182 F53 S32750 MSS SP95 Swaged Nipples Bull Plugs
1. Specification for Duplex Stainless Steel 2507 A182 F53 S32750 MSS SP95 Swaged Nipples Bull Plugs
| Standard | Types | Class Rating/Schedule | Ends | Size |
| MSS SP95 | Concentric/Eccentric Swaged Nipples | | See Below Note1 | 1/4‘’~12'' |
| Bull Plugs | | Threaded | 1/8''~12'' |
| Note1 | PBE:Plain Both Ends BBE Bevel Both Ends TBE: Threaded Both Ends PSE:Plain Small End BSE:Bevel Small End TSE:Threaded Small End PLE:Plain Large End BLE:Bevel Large End TLE:Thread Large End |
| Note2 | For the swage nipples,pipe nipples,the material can be referred to the pipe standard. |
| Note3 | NPT(National Pipe Thread) FPT(Female Pipe Thread) MPT(Male Pipe Thread) BSPT(British Standard Pipe Thread) |
2. About Duplex Stainless Steel ASTM A182 F51 S31803
| Standard | WERKSTOFF NR | UNS |
| Super Duplex 2507 | 1.4410 | S32750 / S32760 |
CHEMICAL COMPOSITION OF SUPER DUPLEX STEEL OLETS
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
MECHANICAL PROPERTIES OF ASTM A815 SUPER DUPLEX STEEL OLETS
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 / S32760 | 7.8 | 0.281 | 1350 | 2460 |
3. APPLICATIONS
- Industrial Boilers
- Power Plants
- Nuclear Plants
- Oil & Gas Industry
- Refineries
- Ship Building
- Heat Exchangers
- Condensers
- Paper & Pulp
- Marine Applications
- Nuclear Power
- Fossil Fuel Power Plants
4. ASME B16.11 Forged Swage Nipple Material & Grades :
- Stainless Steel Forged Swage Nipple :
- ASTM A182, ASTM / ASME SA 358, ASTM / ASME SA 312 GR. TP 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
- Duplex & Super Duplex Steel Forged Swage Nipple :
- ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
- Carbon Steel Forged Swage Nipple :
- ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
- Alloy Steel Forged Swage Nipple :
- ASTM / ASME A 182, ASTM / ASME A 335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
- Copper Alloy Steel Forged Swage Nipple :
- ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
- Nickel Alloy Forged Swage Nipple :
- ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
5. Our Main Export Market
Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia
Product Tags:
|
|

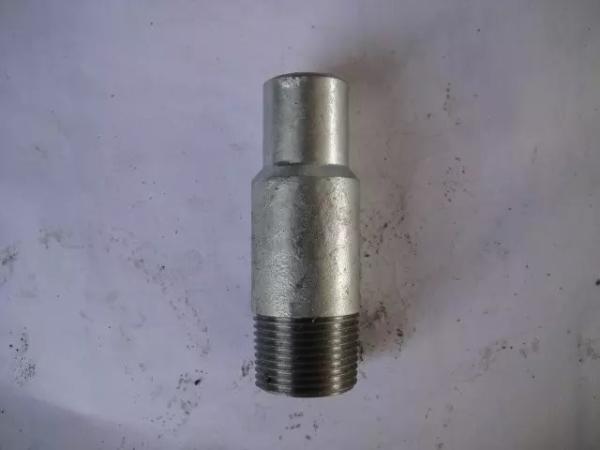

2507 Duplex Stainless Steel Pipe Fittings A182 F53 S32750 MSS SP95 Swaged Nipples Bull Plugs Images
|
