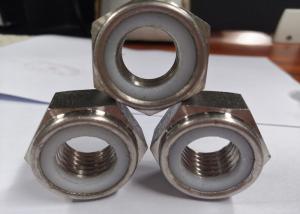

Nickel Alloy Hex Lock Nut Monel K500 Cold Galvanizing DIN985 Standard

Brand Name : HT

Model Number : Nickel Alloy fasteners Monel K500 hex/round/heavy hex/nylon lock nut

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD 1000/set

Payment Terms : L/C,T/T, Western Union

Supply Ability : 1000 set per month

Delivery Time : 30-35 work days

Packaging Details : wooden case, wooden pallet

Product Type : Bolt, Nut, Washer, Stud bolt, U bolt

Name : Nickel Alloy fasteners Monel K500 hex/round/heavy hex/nylon lock nut

Size : M6-M100

Finish : Cold galvanizing, Zinc-Nickel, Black, Cadium plated

Producing standard : DIN, ASME

Material : Nickel alloy/stainless steel/duplex stainless

Contact Now

Nickel Alloy fasteners Monel K500 hex/round/heavy hex/nylon lock nut

1. How does a nylon lock nut work?

When you install the nylon lock nut onto a bolt or threaded stud, the nylon insert wraps around the threads and locks the nut in place. This gives a nylon lock nut a distinct advantage over a lock washer when the bolt or threaded stud is subject to vibration, as the nylon lock nut is unaffected by vibration.

2. Monel K500 hex/round/heavy hex/nylon lock nut dimension

Material:	Hastelloy,.Cupro Nickel, Nickel, Monel,Inconel, Alloy 20 Etc.
Standard :	ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472
Nickel Alloy in Grade:	UNS 2200 (Nickel 200) / UNS 2201 (Nickel 201),, UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Type of Fasteners:	Bolts : Bolts stud bolts, hex head bolts, socket hexagon head screw anchor bolts, u-bolts, J bolts, mushroom head square neck bolts, t- head bolts, wing screw, eye bolt, eye bolt, foundation bolts and structural bolts Washer : Plain washer , plain big & small OD washer , spring lock washer , spring washer heavy duty , tooth washer , star washer , tab washer with one & two tab Nuts : Hexagon nuts, hexagon coupling nuts, hexagon thin nut, square nut, hexagon castle nuts, self locking nut, hexagon domed cap nuts Screw : Pan head slotted screws, cheese head slotted screws, countersunk head slotted screws, countersunk raised head slotted screws, pan phillipse head screw, countersunk Phillipse raised head screws, slotted cheese trim head machine screws, socket head allen cap screws, allen countersunk socket head cap screws, socket head shoulder screws, socket head cap screw low head, hexagon socket set screw with flat point, hexagon socket set screws with cone point, hexagon socket set screw with dog point, hexagon socket set screws with dog point, hexagon socket set screws with cup point, imprial socket cap screws. Other : Threaded rod, as per drawing and customers spec. coating, hot dipped galvanizing, phosphate, Teflon, xylon, zinc, cadmium.
In Form of:	Hex, Square, Round , Threading as per Gauge Etc.

Grade Designation

Alloy	Common Name	Related Specifications			Tensile Strength	Proof Stress	Elongation
		British	European	United States
ALLOY K500	MONEL K500	BS 3076 NA18	2.4375	ASTM B865 N05500, QQ-N-286, AMS 4676	965 [140]	690 [100]	20

3. Monel K500 Bolts Useful Information:

Chemical Composition

Typical compositional ranges for Monel K500 Bolts

Ni	Cu	Al	Ti	C	Mn	Fe	S	Si
63.0-70.0	Remainder	2.30-3.15	.35-.85	.25 max	1.5 max	2.0 max	.01 max	.50 max

Mechanical Properties

Typical mechanical properties for Monel K500 Bolts

	Ultimate Tensile	Yield Strength (0.2% OS)	Elong.	Hardness Rockwell C, min.	HardnessBrinell 3000 kg, min.
Cold Worked/SR Over 1(25.4) to 3
Min	140 KSi	100 KSi	17.0	29	280
Max
Min	965 MPa	690 MPa
Max
Hot Worked/ Aged Hardened
Min	140 KSi	100 KSi	20.0	27	265
Max
Min	965 MPa	690 MPa
Max

4. DIN985 producing standard for MONEL K500 nylon lock nut

Nickel Alloy Hex Lock Nut Monel K500 Cold Galvanizing DIN985 Standard
